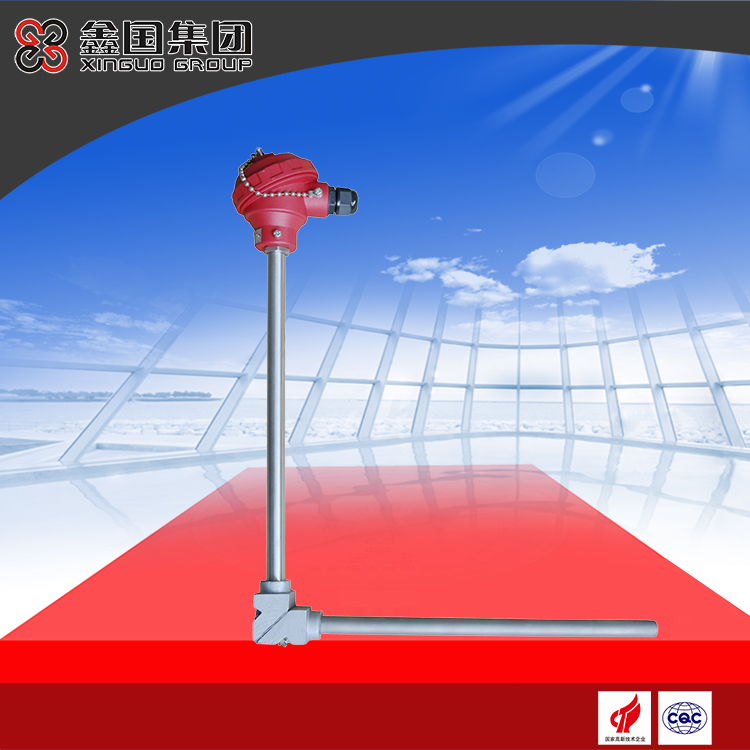

Right Angle Elbow Thermocouple
Right-angle elbow thermocouples are suitable for situations where high temperature and harmful gase
- tel：0086 550 7623999、0086 550 7623888
- fax：0550-7623199 ext 0
- email：xinguo@xinguo.net
Description
1. Application
Right-angle elbow thermocouples are suitable for situations where high temperature and harmful gases have an impact on the thermocouple junction box at the production site, or are not suitable for direct horizontal and vertical installation.
2. Main technical parameters
Electrical outlet: M20x1.5, NPT1/2
Accuracy class: I, II
Protection class: IP65
Nominal pressure: normal pressure
3. Model and specification
| model | Graduation number | Temperature measurement range℃ | Thermal response time | Protection tube material | Specification（L x l） |
| WRN-530 | K | 0-800 | ≤90S | 1Cr18Ni9Ti | 300x150 350x200 400x250 450x300 500x350 550x500 600x450 650x500 |
| WRN2-530 | |||||
| WRE-530 | E | 0-600 | |||
| WRE2-530 | |||||
| WRN-530 | K | 0-800 | |||
| WRN2-530 | |||||
| WRE-530 | E | 0-600 | |||
| WRE2-530 |
